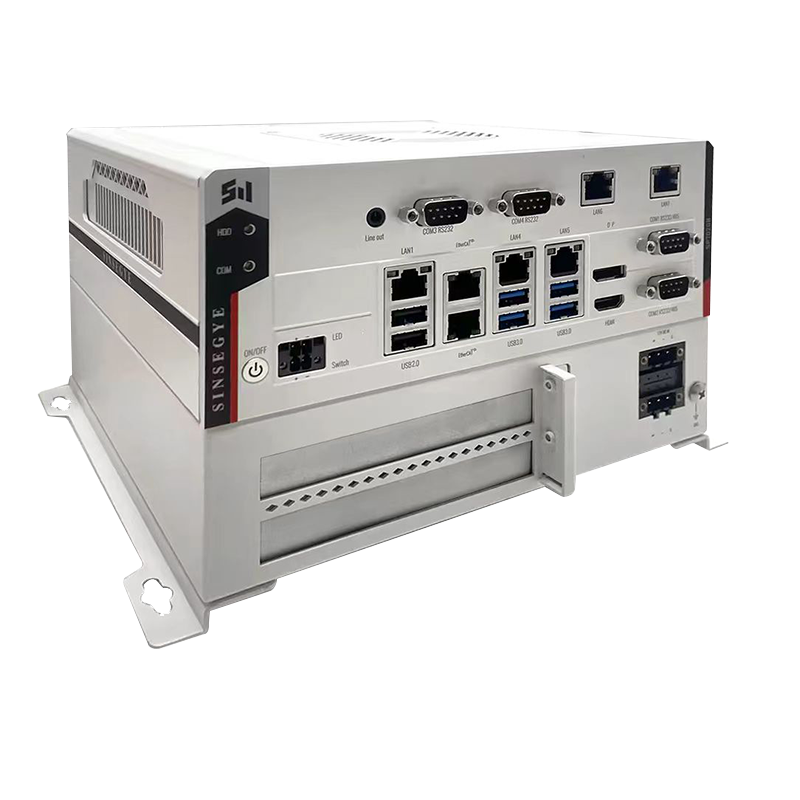

SP7020

The SP7020 series IPC Industrial Intelligent Computer (IIC) includes the SP7020 and SP7022 models, with the SP7022 offering two additional PCIe expansion slots compared to the SP7020.

The characteristics of the SP7020 series products are "computing, control and display are integrated, computing is greater than control, and computing and control resources are flexibly allocated". It perfectly inherits the high-performance hardware carrier of computing and control integration, supports the expansion of various PCIE cards, such as graphics cards, network port cards, serial port cards, CAN cards, etc., and supports the expansion of large computing power GPUs. It has an open Windows ecosystem and powerful PLC control capabilities. It not only has traditional logic control and motion control, but also supports the upper deployment of third-party complex applications, such as visual algorithms.

Since its release in the first half of 24, the SP7020 series iComputer has been widely used in 3C, semiconductors, photovoltaics, CNC and other fields. The SP7020 series IPC-type industrial intelligent machine perfectly integrates the upper computer and the lower computer. Compared with traditional distributed control solutions, it simplifies installation and saves space, which can save more than 30% of the deployment hardware cost.

    Product Overview
    Specification
    Dimension
    Documentation
    Design Drawing
    Certificate

    Product Overview

    The SP7020 series IPC Industrial Intelligent Computer (IIC) includes the SP7020 and SP7022 models, with the SP7022 offering two additional PCIe expansion slots compared to the SP7020.

    The SP7020 series features "integrated computing and control, with computing power exceeding control capabilities, and flexible allocation of computing and control resources." It perfectly inherits the high-performance hardware platform with integrated computing and control, supporting a wide range of PCIe cards such as graphics cards, network cards, serial cards, CAN cards, and more. It also supports the expansion of high-performance GPUs, is compatible with the Windows open ecosystem, and has the powerful control capabilities of a PLC. The system supports traditional logic control, motion control, and upper-level deployment of third-party complex applications, including visual algorithms.

    Chick here,watch the video of SP7020



    Specification

    Product name 7020 7022
    Operating system Linux+Windows10
    Processor Intel Core    I5-12400 ，2.5GHz ，up to 4.4 Ghz ，TDP 65 W ，6 cores, 12 threads
    Memory DDR4 3200MHz  16GB
    Storage 128GB SSD + 512G SSD
    Network port 7（1*i219+6*i210）
    Serial port 4* COM(2*RS485/RS232+2*RS232)
    USB port 4*USB 3.0+2*USB 2.0
    DIO Not support
    Display interface HDMI+DP
    Power supply DC 12V  With switching power supply
    Switch Illuminated push button switch
    SW terminals 4PIN Terminal (Switch + Light)
    Line Out 1*line out
    Graphics card expansion slots Not support 1*PCIEX16+1*PCIEX4
    Installation Embedded
    Exterior dimensions 208 (W) * 202 (D) * 133 (H) mm
    Storage temperature -30~ 70℃
    Operating temperature -10~ 50℃



    Dimension

    You can download the product technical drawings from the link below：

    Download ：🧷SP70 Series iComputer Technical Drawing



    For more dimension drawings, please visit:· Specifications And Dimensions Zone

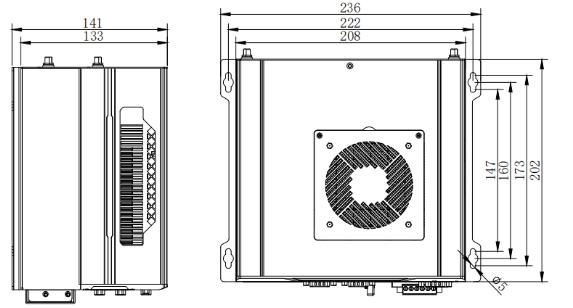

    SP7020（Unit：mm）

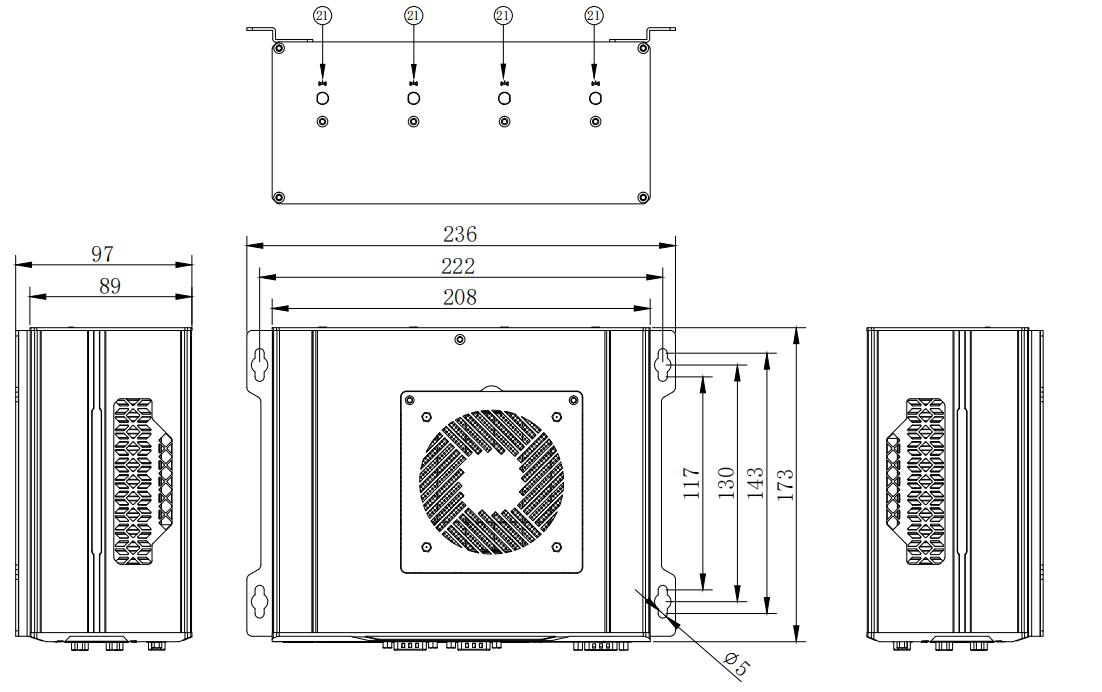

    SP7022（Unit：mm）
